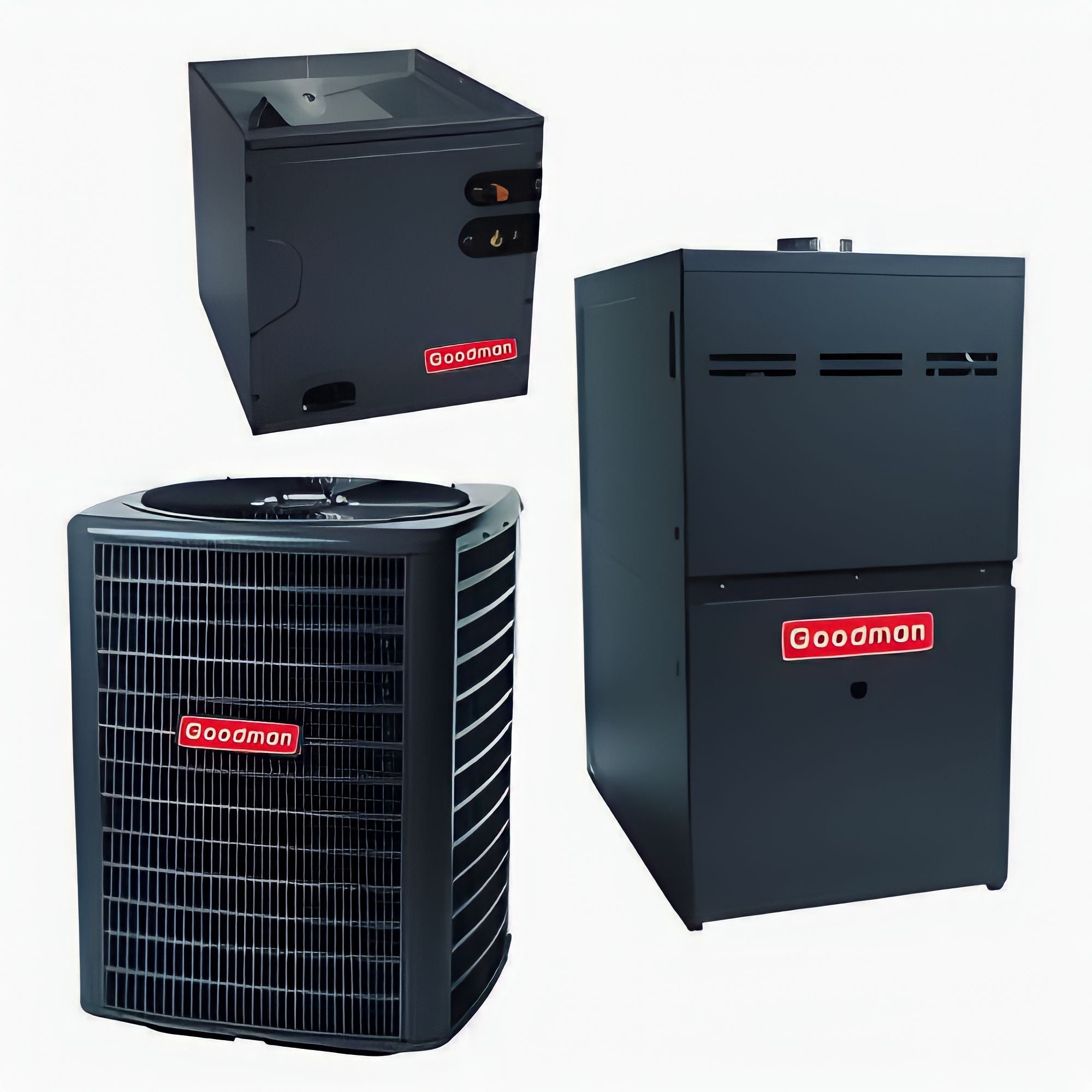

Goodman GM9S960603BN 1.5 Ton 60,000 BTU 96% AFUE Upflow/Horizontal Single Stage Gas Furnace with GSXN401810 Coil & CHPTA1822A4 Thermostat - Perfect for Home Heating in Cold Climates

OVERVIEW

The GM9S960603BN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GM9S960603BN single-stage, multi-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GM9S960603BN.

QUICK FACTS

• This furnace is ideal to heat a smaller house (depending on climate)
• 60,000 BTU 80% efficient natural gas furnace
• Requires metal flue venting
• Can be used in the upflow or horizontal orientation
• Can be converted to an LP furnace with a conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

The GMES800603BN Goodman gas furnace is 60,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 48,000 BTU’s (60,000 X 80% AFUE) per hour. In ideal climate conditions, this 60,000 BTU furnace is usually used to heat a small house.

80% Efficiency Rating

The GM9S960603BN Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.

The GM9S960603BN Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

From the factory, the GM9S960603BN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace’s corresponding, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

Instead of the last generation PSC blower motor, the GM9S960603BN utilizes a multi-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GM9S960603BN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

OVERVIEW

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXN401810 is no exception, with its durability, reliability, and one of the highest efficiencies available.

QUICK FACTS

• Ideal size to cover a smaller house in ideal climates
• 1.5 ton, 14 SEER AC-only condenser
• Fully charged for up to 15' of line set
• Low sound output
• Factory-installed filter drier

1.5 ton

The GSXN401810 AC-only condenser is 1.5 tons, normally enough to cover up to a smaller house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.

16 SEER

The GSXN401810 condenser is designed to be up to 16 SEER in ideal system configurations. Considered a high-efficiency, 14 SEER is around 12% more efficient than a 14 SEER system, saving you a lot of money in energy bills. 14 SEER efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.

Due to new efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.

Warranty

The GSXN401810 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet of Goodman's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the GSXN401810 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.

Installation and Maintenance

For easier maintenance, Goodman designed the GSXN401810's cabinet with two maintenance access panels: one on the top and one on the side. For easier installation, the GSXN401810 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.

Comfort in Mind

Superior comfort has always been the primary goal for Goodman. The GSXN401810 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.
